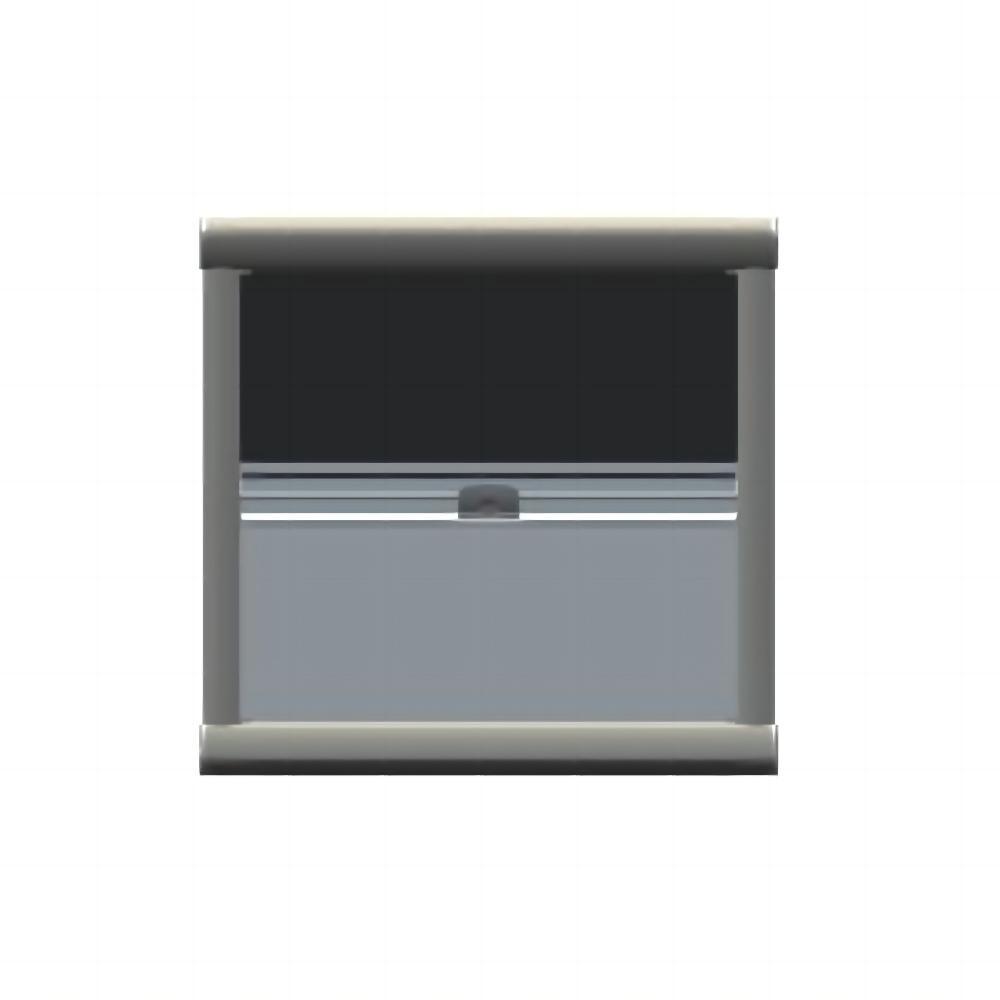

PB-Pleated Interior Window

Frame: Powder coated high quality aluminum alloy, durable and light weight. Color: warm white,can be customized.Pull rod: Durable and high strength aluminum alloy withoxidation. treatment surface. Pushhandle operate with the rod lock smoothly.

Classification

RV doors and windows

Keywords

Online Inquiry

features and functions

Product Features

●Frame: Powder coated high quality aluminum alloy, durable and light weight.

●Color: warm white，can be customized.

●Pull rod: Durable and high strength aluminum alloy withoxidation. treatment surface. Pushhandle operate with the rod lock smoothly.

●Shading cloth: new coarse cloth pattern and texture: external matte aluminum foil; The interior is warm white polyester fabric.

●Open: Adopting a latch and magnetic structure, the sunshade cloth and windowscreen can be parked at any position when locked.

Main Functions

●Light heavy plastic frame

●Silent design, no noise during operation and vibration

●Mosquito-resistant design, mosquitoes do not crawl into the car through the pleats.

●When pre-installed with the sliding window, the hanging ring is automatically positioned for easy assembly and fixing.

Specifications

Window specification PW-H-W FPW-H-W	PB Interior Window dimension/mm (H 76)-(W 41)	Cut hole (H+3)-(W+3)	Remarks
PW-300-500	376-541	303-503
PW-350-600	426-641	353-603
PW-450-500	526-541	453-503
PW-450-610	526-641	453-613
PW-450-900	526-941	453-903
PW-450-1000	526-1041	453-1003
PW-450-1100	526-1141	453-1103
PW-500-900	576-941	503-903
PW-500-1200	576-1241	503-1203
PW-900-900	976-941	903-903
FPW-350-500	426-541	353-503
FPW-450-500	526-541	453-503
FPW-450-610	526-651	453-613
FPW-450-900	526-941	453-903
FPW-450-1100	526-1141	453-1103
FPW-500-500	576-541	503-503
FPW-500-900	576-941	503-903

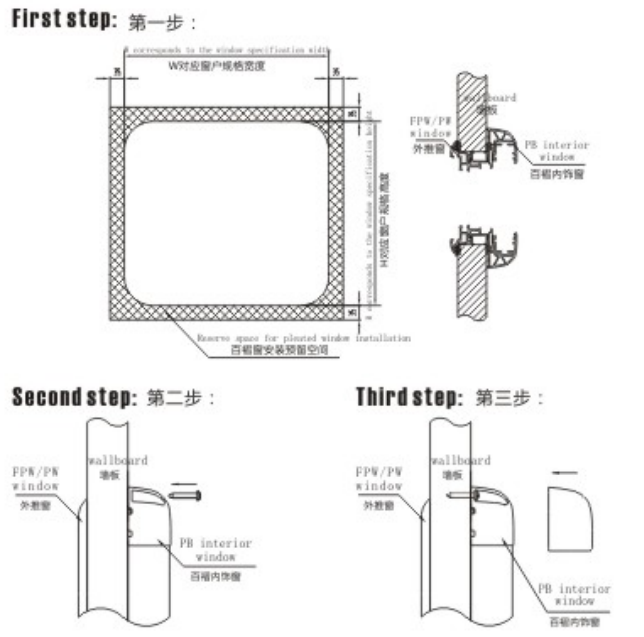

H: Height of window mounting sur face, unit: mm;
W: Width of window mounting surface, unit: mm.
Shipped with existing specifications PW/FPW extruded window;
Or customized separately according to H or W size.
