FPW-Flat Push Window (outer flat & inner convex)

The window has on, off, ventilation, light transmission, shade, antimosquito,sound insulation, heat insulation, privacy and other functions and good waterproof performance.Used as emergency exits when cur tains and windows are bothopened(except for small windows).

Classification

RV doors and windows

Keywords

Online Inquiry

features and functions

Product Features

●Window frame:Powder coated high quality aluminumaly.

●Frame color: White, black,silver grey,or customized color.

●Glass: Light grey ,double glazing acrylic panel,UV resistance, certified by Europe ECE standards.

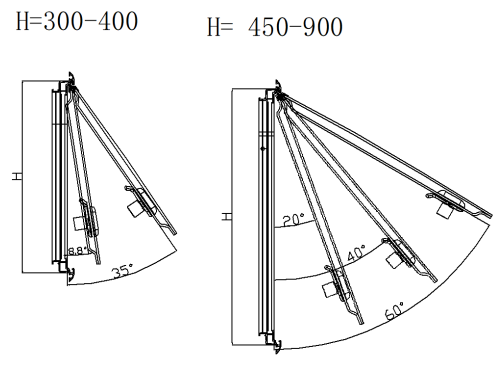

●Open: Assembly with telescopic strut. The 350mm-high windows have an opening angle of 8.8 degrees and 35 degrees. For 450mm、500mm. 550mm. 900mm height window have an opening angle of 20°、 40°、 60° correspondingly ( see diagram below).

Main Functions

●The window has on, off, ventilation, light transmission, shade, antimosquito,sound insulation, heat insulation, privacyand other functions and good waterproof performance.

●Used as emergency exits when cur tains andwindows arebothopened(except for small windows).

●Lightweight structure, easy to install and use, strong and durable,a variety of models.

●External flat structure, effectively reduce wind resistance and wind noise.

●Reliably and noise -free structure connected by new hinges.

●Glass surface hardness 5- 6H, more wear-resistant, anti-abrasion.

●Hanging ring structure, can be assembly withvariety interio windows smoothly.

Specifications

Size FPW-H-W	Glass Size (H-21.4)-(W-21.4)	Cut hole size (H+3)-(W+3)	Weight kg
FPW-350-500	328.6-478.6	353-503
FPW-450-500	428.6-478.6	453-503
FPW-450-610	428.6-588.6	453-613
FPW-450-900	428.6-878.6	453-903
FPW-450-1100	428.6-1078.6	453-1103
FPW-500-500	478.6-478.6	503-503
FPW-500-900	478.6-878.6	503-903
FPW-500-1200	478.6-1178.6	503-1203
FPW-900-900	878.6-878.6	903-903
