RV Accessories Series
Indoor Ladder
Classification
Keywords
Indoor Ladder
features and functions
Product Features
1. This indoor straight ladder beautiful appearance. It is made of lightweight high-strength aluminum alloy. The surface is sandblasted and oxidized, and it has a frosted texture.
2. RV's indoor straight ladder is stored between the side forehead bed and the sofa, and is equipped with 4 supporting buckles, which are installed on the forehead bed on the lower baffle.

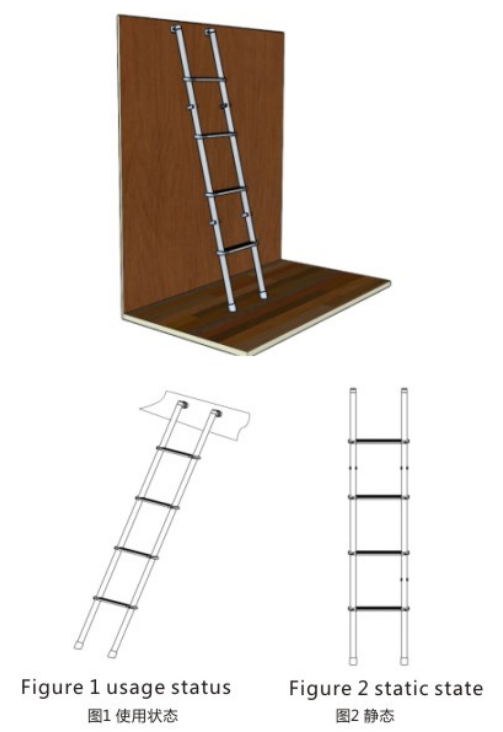

3. The working angle of the indoor straight ladder The upper part of the saloon car is 75 degrees from the ground and is hooked on the side of the forehead bed.
4. The hook on the top of the RV indoor ladder has been connected to the profile by rivets.
5. RV indoor ladder rated carrying capacity of 135kg.
6. The odor level of rubber and plastic parts is lower than 3.5.
Specifications
Mold | Ladder installation height/mm | Load capacity/kg | Angle bend |
IL-1500 | 1500 | 135 | |
IL-1600 | 1600 | 135 |
H: The height of the ladder, in millimeters; specifications can be customized according to customer requirements.
Main Applications
Main purpose Used for self- propelled/trailer indoor bedside ladder.
Instructions for use
